Air Moving Equipment

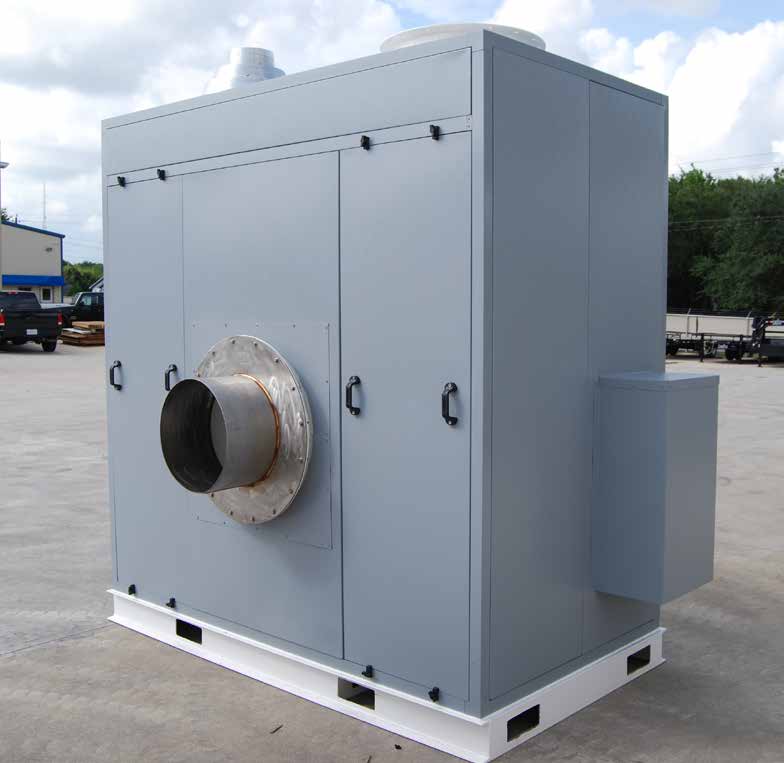

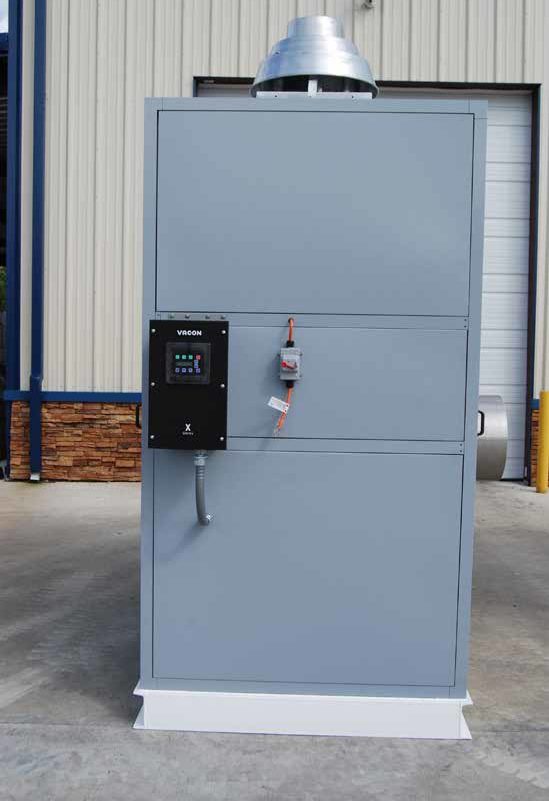

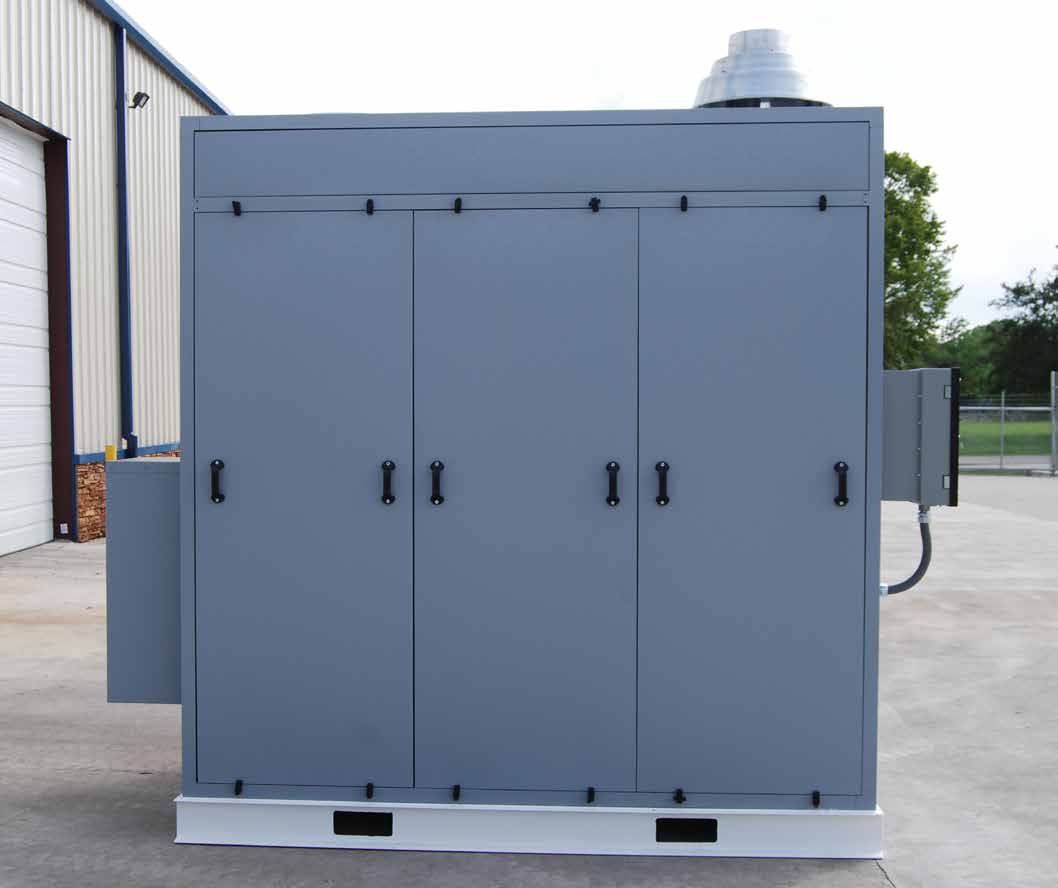

10,000 CFM Blower
Vapor Tech offers a 10,000 CFM centrifugal blower for rent. This unit is VFD driven . Unit is rated for 10,000 CFM @ 22" of water. VFD allows for variable CFM throughput. Available for short or long term rental.
- 10,000 CFM @ 22” of water
- 18” Hose Connection (inlet)
- 18” Flange (outlet)
- Material of Construction: Steel Housing w/Aluminum Impeller
- Skid Mounted
- VFD Driven
- 480V Power Requirement
- Full Load Amps: 58
- Motor HP:50
- Tank Venting
- Vapor Scrubber Scrubbers Systems
- Tank Degassing
- Building or Structure Venting
| Product Line | Backward Curved Pressure Blower |
| Performance Options | 85.0% Width Wheel |
| Volume (CFM) | 10,000 |
| Press. (in wg) | 22 (FSP) |
| Temperature | 70° F |
| Altitude | N/A |
| Speed (RPM) | 1770 |
| Power (BHP) | 45.6 |
| Density (lb/ft3) | 0.075 |
| Max Safe Speed | 3600 |
