Carbon Filtration Equipment

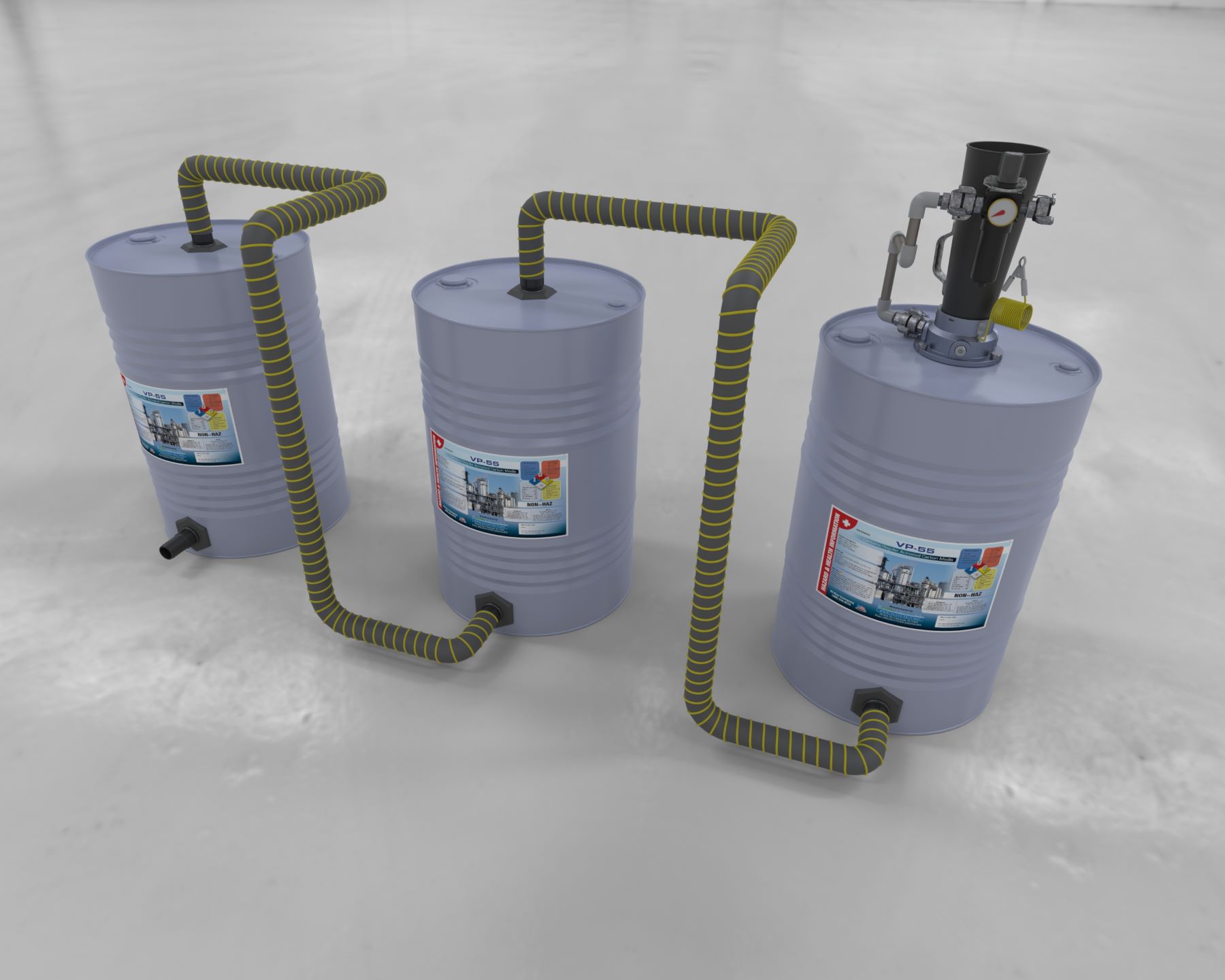

VP55A Carbon Adsorber for Ammonia
The VP55A carbon adsorber is designed for vapor phase flows up to 120 CFM. A specialized acid impregnated media (400 pounds) specifically targets ammonia and amines. Removal efficiency as high as 99.9%. Available in larger sizes as well.
- Product Storage Vents
- Sewer Vents
- Process & Reactor Vents
- Lab Applications
- Wastewater Odor Control
- Frac & Mix Tank Vapor Control
| Vapor Inlet | 2” FNPT |
| Vapor Outlet | 2” FNPT |
| Monitor Port | 3/4” FNPT (fits most breakthrough indicators) |
| Internal Distributor | Steel |
| Dimensions | 25” dia x 35” h |
| Internal/Exterior Coating | Epoxy/Enamel |
| Carbon Fill Volume | 7.0 cu ft |
| Cross Sectional Area | 2.8 sq ft |
| Approx. Carbon Weight | 400 lbs |
| Vessell Construction | Steel |
| Shipping Weight | 445 lbs (approx) |
| Options Available | Venturi/Electric Blower, Breakthrough Indicator |
| Maximum Flow | 120 SCFM |
| Maximum Pressure | 15 psig |
| Maximum Vacuum | 17” Hg |
| Maximum Temperature | 140° |
| Incompatible Vapors | Ketones & Aldehydes (Fire!) |
| Fire Hazards | Low Flow with High VOC’s |
